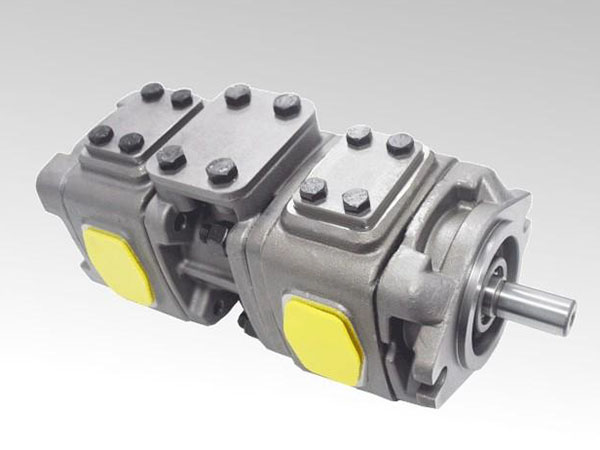

Understanding the Structure and Working Principle of HG Dual Pumps

The HG dual pump is a hydraulic pump widely used in industrial and engineering fields, featuring high efficiency, low noise, and high reliability. Below is an overview of the structure and working principle of the HG dual pump.

I. Structure

The HG dual pump mainly consists of two single-stage, single-suction centrifugal pumps driven by a common shaft. The suction and discharge ports of the two pumps are located on opposite sides and are connected through internal flow passages. The external structure of the dual pump mainly comprises the pump body, pump cover, shaft, bearing housing, sealing rings, impellers, shaft sleeves, and inlet/outlet pipes.

II. Working Principle

The working principle of the HG dual pump is similar to that of a single-stage, single-suction centrifugal pump. The difference is that the two pumps in the dual pump are connected in series via a common shaft, which drives both pumps to operate simultaneously. Specifically, when the motor drives the common shaft to rotate, the impellers of both centrifugal pumps rotate at the same time. On the suction side, the negative pressure generated by the rotating impellers draws the liquid into the pump, which is then directed through the internal flow passages into the pump on the discharge side. On the discharge side, the pressure generated by the rotating impellers forces the liquid out of the pump.

III. Features

High Efficiency: The design of the HG dual pump optimizes the efficiency and flow rate of both pumps, thereby improving the overall system efficiency.

Low Noise: Since the two pumps in the dual pump operate independently, the noise level of each individual pump is reduced, resulting in lower overall system noise.

High Reliability: The structural design of the dual pump enhances the reliability of both units. Additionally, the common shaft design minimizes the impact of varying bearing loads, further improving the overall system's reliability.

Easy Maintenance: The two pumps can be disassembled and serviced independently without interfering with each other, making maintenance much more convenient.

Wide Range of Applications: Due to its high efficiency, low noise, and high reliability, the HG dual pump is widely used in industrial and engineering fields, such as metallurgy, petrochemicals, and mining.

IV. Common Faults and Troubleshooting

Starting Difficulties: If the dual pump is hard to start, it may be caused by low power supply voltage or incorrect wiring, preventing the motor from starting properly. In this case, check if the power voltage and wiring are correct.

Insufficient Flow Rate: If the flow rate is inadequate, it may be due to impeller wear or blockage. Check the impellers for wear or blockages and replace or clean them promptly.

Excessive Noise: If the noise level is too high, it may be caused by loose or damaged impellers. Check the impellers for looseness or damage, and tighten or replace them as necessary.

Fluid Leakage: If there is severe fluid leakage, it may be due to worn or damaged sealing rings. Inspect the sealing rings for wear or damage and replace them promptly.

Bearing Damage: If the bearings are damaged, it may be caused by poor bearing quality or improper installation. Check the bearings for damage or improper installation, and replace or adjust them accordingly.

V. Precautions for Use

When operating the dual pump, strictly follow the specified requirements to avoid overloading or over-speeding.

During operation, regularly inspect the running condition of the dual pump, including bearing temperature, lubrication status, and sealing ring wear.

Maintain the cleanliness of the dual pump during operation to prevent debris and dirt from entering the pump.

Regularly replace wearing parts such as bearing grease and sealing rings to ensure the normal operation of the dual pump.

In case of emergencies or malfunctions during operation, stop the machine immediately for inspection and troubleshooting to ensure safe operation.
