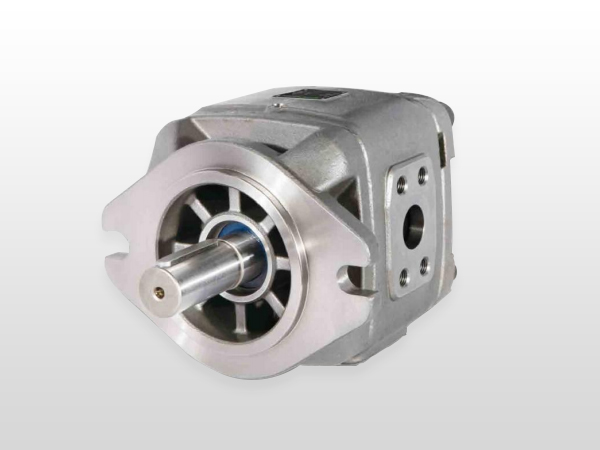

Identifying the Plain Key Shaft on an Internal Gear Pump

The internal gear pump is a common hydraulic component primarily used for transferring liquid media. In an internal gear pump, the plain key shaft is a crucial component mainly used to secure the gears and transmit power. Below is a detailed explanation of the plain key shaft in internal gear pumps:

Structural Characteristics

The plain key shaft of an internal gear pump is typically manufactured from high-quality carbon steel or alloy steel, offering high strength and excellent wear resistance. The cross-section of the shaft is generally circular, and its surface undergoes precision machining and polishing to ensure accurate fitment with the gears. One end of the plain key shaft usually features a keyway for mounting the driving gear, while the other end is supported by bearings on the pump housing.

Gear Fixation

In an internal gear pump, a precise fit between the gears and the shaft must be maintained. The keyway on the plain key shaft mates with the key on the gear to secure the gear onto the shaft. The dimensions and shape of the keyway must match the key on the gear to ensure the gear remains in the correct position on the shaft.

Power Transmission

The plain key shaft also plays a critical role in power transmission. When the internal gear pump operates, the plain key shaft transfers rotational power from the input shaft to the gears, which in turn drives the liquid medium. During this process, the plain key shaft is subjected to torsional and bending loads; therefore, it must possess sufficient strength and rigidity.

Precision Requirements

The machining precision of the plain key shaft significantly impacts the performance and service life of the internal gear pump. Parameters such as straightness, cylindricity, and surface roughness of the shaft must be strictly controlled to ensure the fit accuracy between the gear and the shaft. Additionally, the dimensional and geometric precision of the keyway must meet design requirements to guarantee stable fixation and accurate power transmission of the gear on the shaft.

Axial Positioning

Axial positioning of the plain key shaft is also of great importance in an internal gear pump. On one hand, it prevents the gear from moving axially, ensuring the sealing performance between the gear and the pump housing. On the other hand, it ensures the stable axial positioning of the plain key shaft itself, preventing excessive axial displacement or wobbling. To achieve this, bearing support structures, such as bearing seats and shaft sleeves, are typically set at one end of the plain key shaft.

Maintenance and Inspection

As a key component of the internal gear pump, the plain key shaft requires regular maintenance and inspection. During maintenance, it should be checked for wear, deformation, or looseness, as well as the fit condition between the keyway and the gear key. If any issues are found, timely measures should be taken for repair or replacement. Meanwhile, the internal gear pump should be periodically disassembled and cleaned to remove accumulated dirt and debris, ensuring it maintains good working condition.

Material Selection

The choice of material for the plain key shaft has a significant impact on its performance and service life. Generally, the material should possess high strength, wear resistance, and good machinability. Commonly used materials include high-quality carbon steel, alloy steel, and stainless steel. The appropriate material should be selected for manufacturing based on specific usage requirements and operating conditions.

Manufacturing Process

The manufacturing process of the plain key shaft greatly affects its precision and performance. It generally includes processes such as blanking, turning, milling, heat treatment, and grinding. During manufacturing, parameters like dimensional precision, geometric precision, and surface roughness must be strictly controlled to ensure the quality and performance of the plain key shaft. Furthermore, to enhance its service life and stability, surface strengthening treatments such as shot peening or roller burnishing can be applied.

Conclusion

In summary, as a critical component for fixing gears and transmitting power in internal gear pumps, the plain key shaft has been thoroughly explained in terms of its structural characteristics, gear fixation, power transmission, precision requirements, axial positioning, maintenance and inspection, material selection, and manufacturing processes. Understanding these aspects helps to better comprehend the working principles and operational performance of internal gear pumps.
